●特征 FEATURES

表面贴装，小型、超薄电感器，大功率，高饱和，低电阻之 特。 磁性胶水涂敷结构极大减少了噪声，闭合磁路结构设计，漏 滋少，抗 EMI 能力强。 同等尺寸额定电流较传统电感高出 30%以上。工作频率范 围广可达 5MHZ 以上。 工作温度范围-40°C 至+125°C.

The inductor designed as surface mounting,smallest  and thinnest with high power high saturation and low  resistance. Magnetic-resin shielded structure reduces buzz noise  to ultra-low levels Closed magnetic circuit structure  reduces magnetic leakage flux,high performance of  anti-EMI. Compared with the same size part,the rated current  30%higher than the traditional inductors. Wide range working frequency that reach more than  5MHz. Operating temperature range -40℃to+125℃

●用途 Applications

 录像机、液晶显示器、笔记本电脑、通讯、设 备、办公自动化等电子设备的电源扼流。

Power supply choke for small electrical equipments  such as VTR,LCD display,Notebook,communication  equipment,and so on.

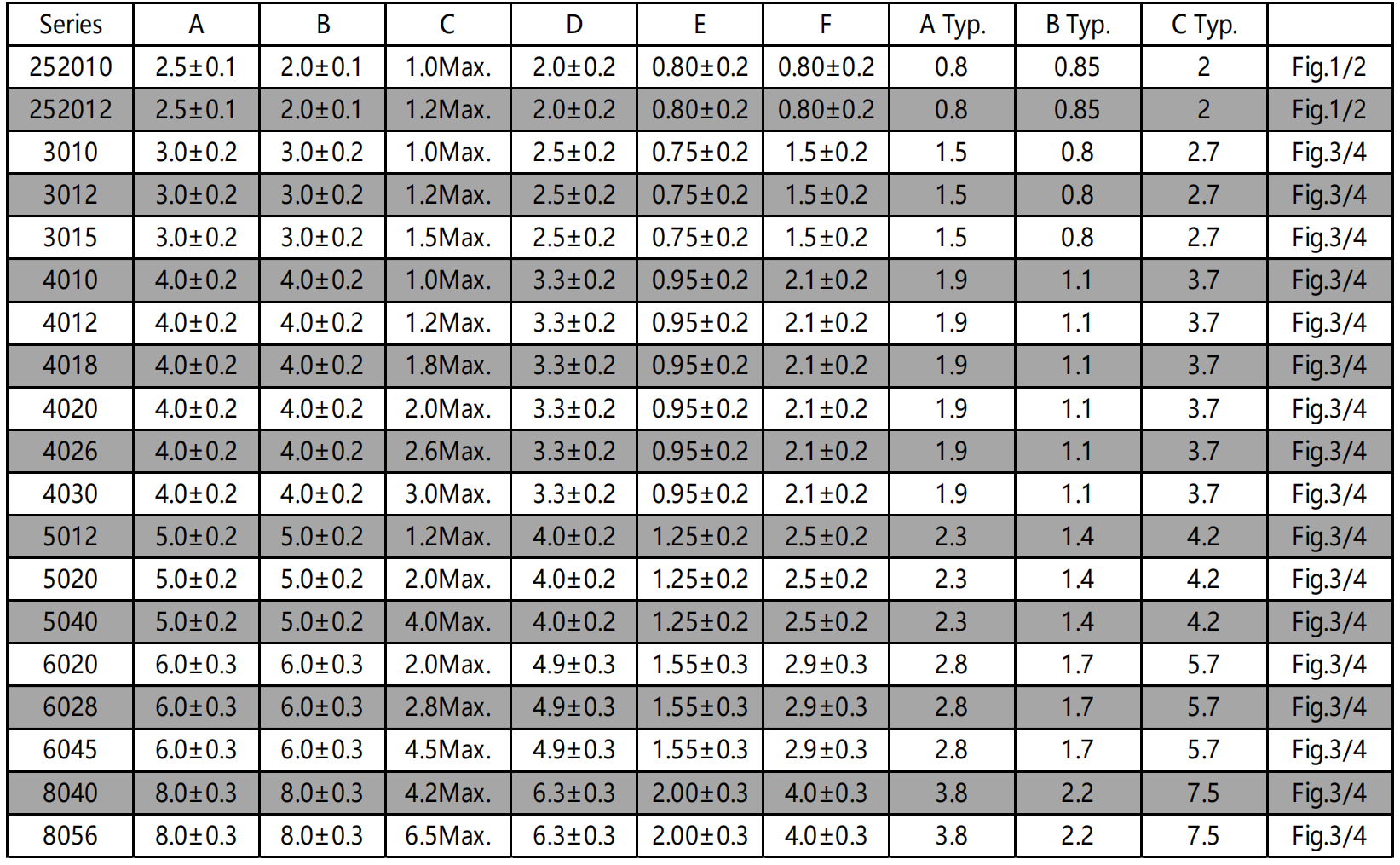

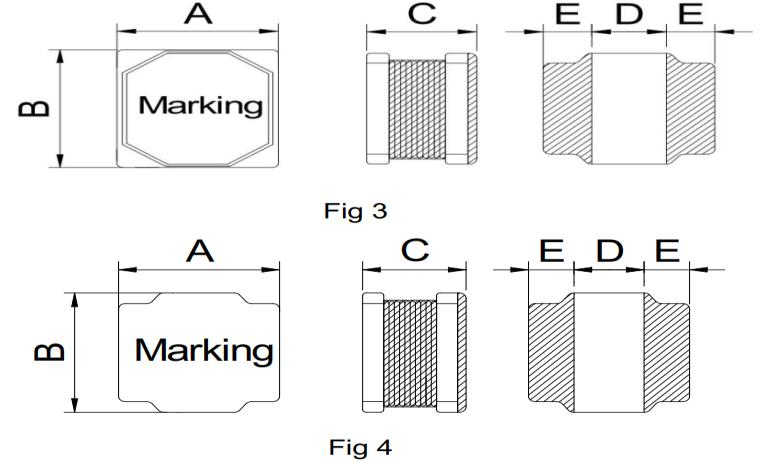

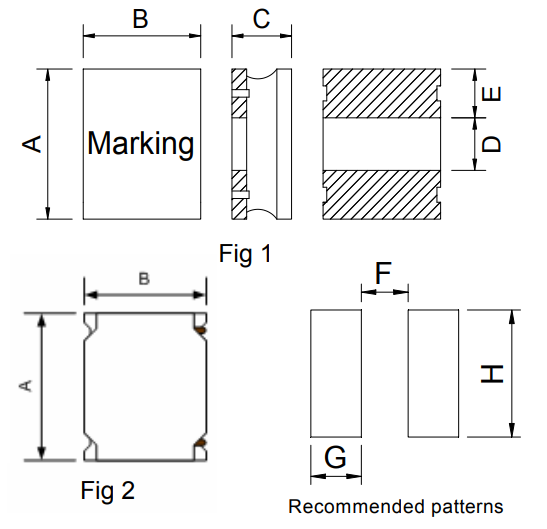

●结构及尺寸 Structure And Dimensions
