功率电感

体积L*W*H
(mm)

1.0x0.7x0.65

1.2x1.0x0.65

1.4x1.2x0.65

1.4x1.2x0.7

1.4x1.2x0.8

1.6x0.8x0.65

1.6x0.8x0.8

10.0x11.0x3.8

10.0x11.5x4.8

10.0×11.0×3.8

10.0×11.5×2.8

10.0×11.5×4.8

10.5x10.5x4

10.5x10.5x5

11×10×3.8

11×10×4.8

12.5x12.5x10

12.5x12.5x5

12.5x12.5x6

12.5x12.5x8

12.6X13.45×4.8

12.6X13.45×5.8

12.6X13.45×6.5

12.6x13.5x4.8

12.6x13.5x5.8

12.6x13.5x6.5

12.8X13.5×4

12.8x13.5x4

13.5×12.6×4.8

13.5×12.6×5.8

17.2x17.2x6.7

17.5×17.0×6.7

2.0x1.2x0.65

2.0x1.2x0.8

2.0x1.2x1.0

2.0x1.2x1.2

2.0x1.6x0.55

2.0x1.6x0.65

2.0x1.6x0.7

2.0x1.6x0.8

2.0x1.6x1.0

2.0x1.6x1.2

2.5x2.0x0.75

2.5x2.0x0.8

2.5x2.0x1

2.5x2.0x1.0

2.5x2.0x1.2

3.0x3.0x1

3.0x3.0x1.0

3.0x3.0x1.2

3.0x3.0x1.5

3.0x3.0x1.8

3.0x3.0x2.0

3.2x2.5x1.0

3.2x2.5x1.2

3.2x2.5x2.0

4.0x4.0x1

4.0x4.0x1.0

4.0x4.0x1.2

4.0x4.0x1.8

4.0x4.0x2

4.0x4.0x2.0

4.0x4.0x2.6

4.0x4.0x3

4.0x4.0x3.0

4.2x4.4x1.0

4.2x4.4x1.8

4.2×4.4×1.0

4.2×4.4×1.8

4.4×4.2×1.8

5.0x5.0x1.2

5.0x5.0x2

5.0x5.0x4

5.2x5.4x1.6

5.2x5.4x1.8

5.2x5.4x2.8

5.2×5.4×1.6

5.2×5.4×1.8

5.2×5.4×2.8

5.7×5.2×2.8

6.0x6.0x2

6.0x6.0x2.8

6.0x6.0x4.5

6.6X7.0×2.8

6.6x7.0x1.6

6.6x7.0x1.8

6.6x7.0x2.2

6.6x7.0x2.8

6.6x7.0x4.8

6.6×7.0×1.6

6.6×7.0×1.8

6.6×7.0×2.2

6.6×7.0×4.8

7.3×6.6×2.8

7.3×6.6×4.8

7.8x7.8x4

7.8x7.8x5

8.0x8.0x4

8.0x8.0x6.5

8.2x8.8x4.8

8.2×8.8×3.8

8.2×8.8×4.8

误差

±10%

±20%

±30%

电感量
(nH)

10015 000 00010015 000 000100 — 15 000 000

100

15000000

阻抗@频率

10100000

额定电流
(A)

0.06700.06700.06 — 70

0.06

70

额定电压V

10100000

直流电阻
(Ω)

0.00177.40.00177.40.001 — 77.4

0.001

77.4

饱和电流
(A)

011801180 — 118

0

118

温升电流
(A)

0700700 — 70

0

70

重置

搜索

序号	图片	产品名称	体积LWH (mm)	误差	电感量(μH)	阻抗@频率	额定电流(A)	额定电压V	直流电阻(Ω)	饱和电流(A)	温升电流(A)	规格书

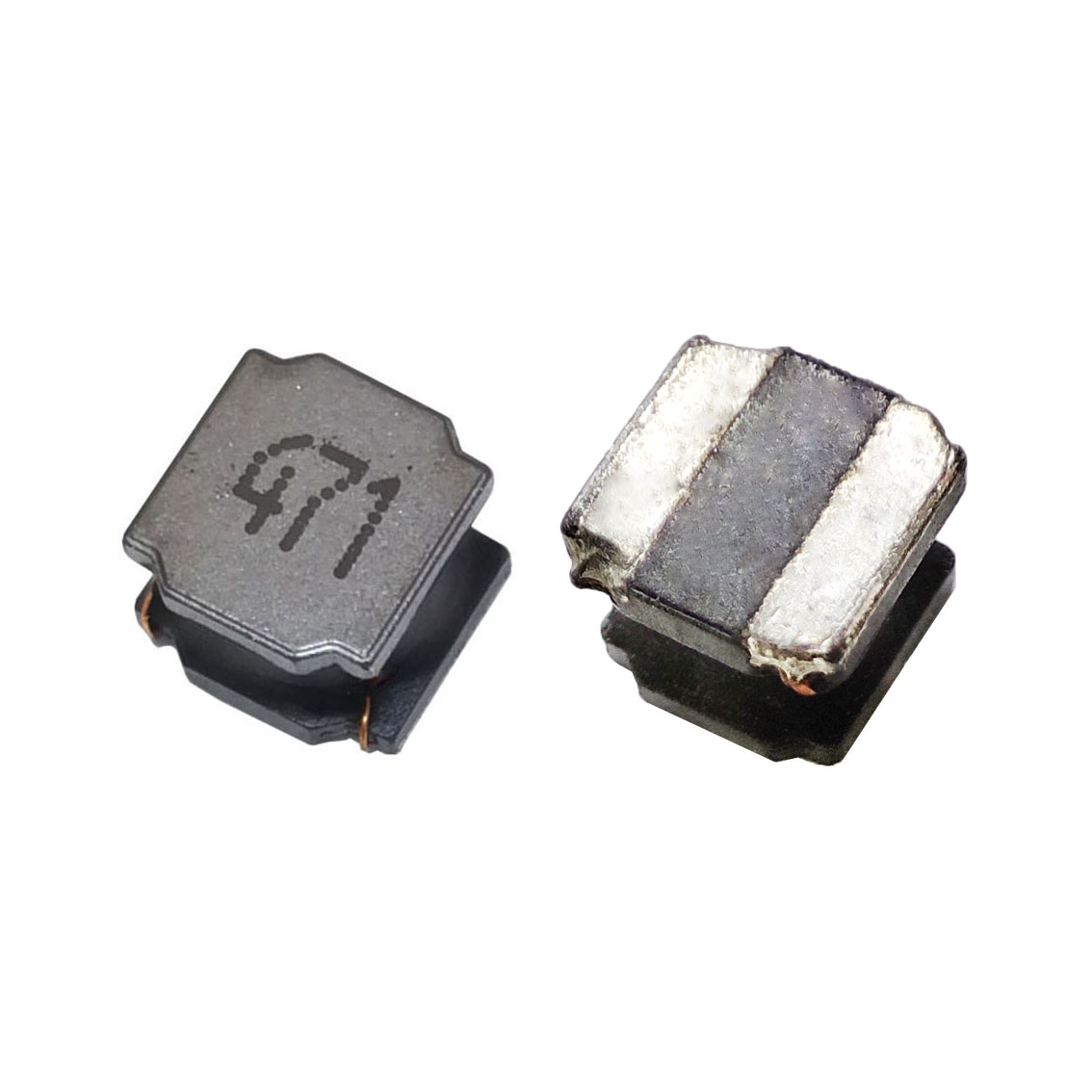

1		RPNR252010SR22N	2.5x2.0x1mm	±30%	220nH		2.7A		0.036Ω	2.7A	3A
2		RPNR252010SR33N	2.5x2.0x1mm	±30%	330nH		2.4A		0.048Ω	4A	2.4A
3		RPNR252010SR47N	2.5x2.0x1mm	±30%	470nH		2.35A		0.056Ω	2.5A	2.35A
4		RPNR252010SR56N	2.5x2.0x1mm	±30%	560nH		2A		0.072Ω	2.9A	2A
5		RPNR252010SR68N	2.5x2.0x1mm	±30%	680nH		2A		0.074Ω	2.2A	2A
6		RPNR252010S1R0N	2.5x2.0x1mm	±30%	1uH		1.65A		0.108Ω	1.85A	1.65A
7		RPNR252010S1R5N	2.5x2.0x1mm	±30%	1.5uH		1.3A		0.182Ω	1.8A	1.3A
8		RPNR252010S2R2N	2.5x2.0x1mm	±30%	2.2uH		1.2A		0.209Ω	1.2A	1.2A
9		RPNR252010S3R3M	2.5x2.0x1mm	±20%	3.3uH		900mA		0.328Ω	1.05A	0.9A
10		RPNR252010S4R7M	2.5x2.0x1mm	±20%	4.7uH		700mA		0.563Ω	0.95A	0.7A
11		RPNR252010S5R6M	2.5x2.0x1mm	±20%	5.6uH		730mA		0.625Ω	0.8A	0.73A
12		RPNR252010S6R8M	2.5x2.0x1mm	±20%	6.8uH		590mA		0.896Ω	0.78A	0.59A
13		RPNR252010S100M	2.5x2.0x1mm	±20%	10uH		500mA		1.092Ω	0.65A	0.5A
14		RPNR252010S150M	2.5x2.0x1mm	±20%	15uH		400mA		1.508Ω	0.4A	0.5A
15		RPNR252010S220M	2.5x2.0x1mm	±20%	22uH		400mA		1.625Ω	0.4A	0.45A
16		RPNR252012SR22N	2.5x2.0x1.2mm	±30%	220nH		2.2A		0.047Ω	6.1A	2.2A
17		RPNR252012SR33N	2.5x2.0x1.2mm	±30%	330nH		2.2A		0.047Ω	4A	2.2A
18		RPNR252012SR47N	2.5x2.0x1.2mm	±30%	470nH		2.15A		0.061Ω	3.82A	2.15A
19		RPNR252012SR68N	2.5x2.0x1.2mm	±30%	680nH		1.95A		0.074Ω	3.28A	1.95A
20		RPNR252012S1R0N	2.5x2.0x1.2mm	±30%	1uH		1.93A		0.09Ω	2.59A	1.93A

搜索结果：1803 条 1-20条
