●特征  FEATURES

具有较高的磁饱和度，大功率特点。 有效隔离外界电磁信号的干扰，具有较好的抗干扰性能。 工作温度范围-40°C 至+105°C（单个电感无包装）

Has high magnetic saturation and high power  characteristics. Effectively isolates interference from external  electromagnetic signals and has good antiinterference performance. Operating temperature range -40 ℃ to +105 ℃ (individual chip without packing).

●用途 Applications

录影机，OA 器，音箱，LED 电视，通信设备，DCDC 转换器。

Power supply for TVR,OA equipment,audio,LED  television communicaton equipments,DC/DC  converters,etc.

●结构及尺寸 Structure And Dimension

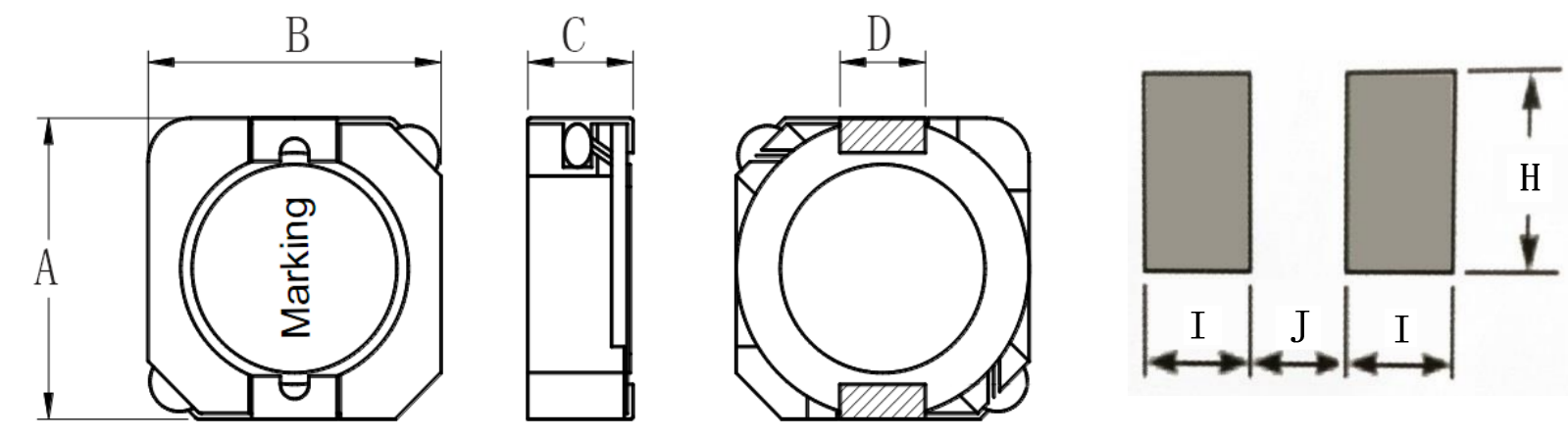

Fig.1

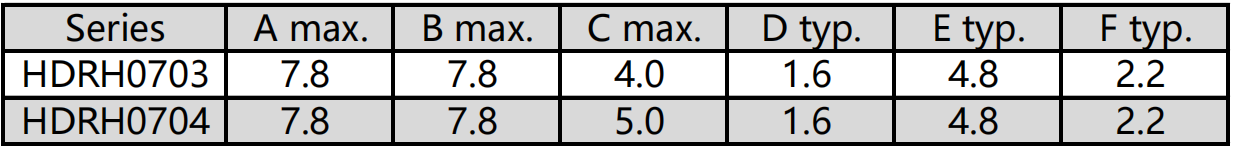

Unit:mm

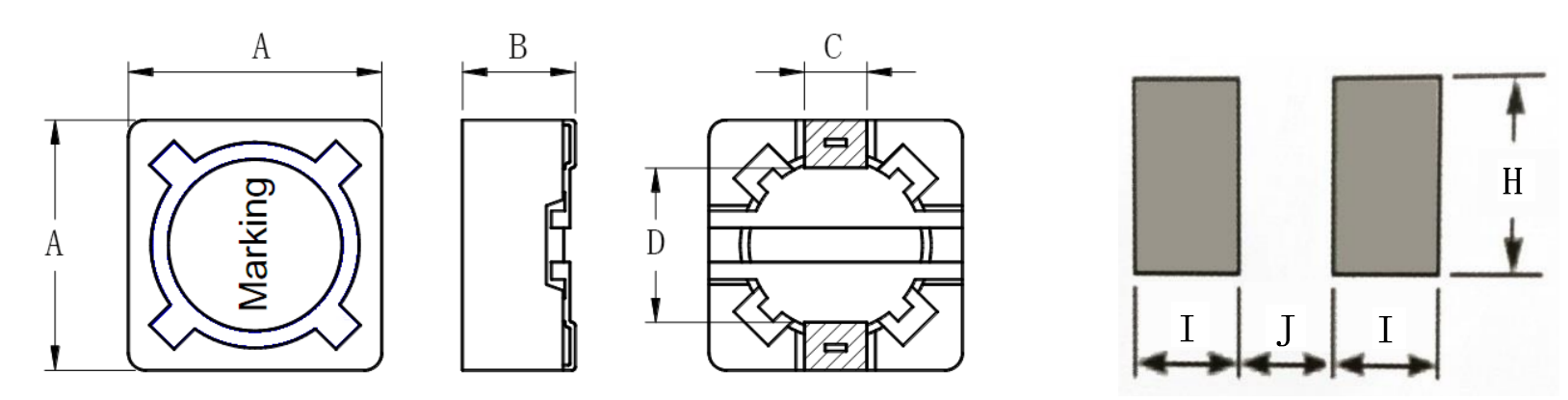

Fig.2

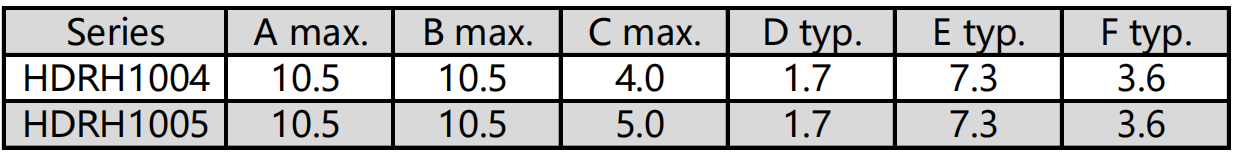

Unit:mm
